CHIPSET INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors- Intel® Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR5- Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC- un-buffered memory
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 - supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode- supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
LAN Realtek® RTL8125BG 2.5G LAN
ONBOARD GRAPHICS 2x HDMI™
Support HDMI™ 2.1- maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4- maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID Supports RAID 0- RAID 1- RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX- 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3- FIPS- FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LED FEATURE 4x EZ Debug LED

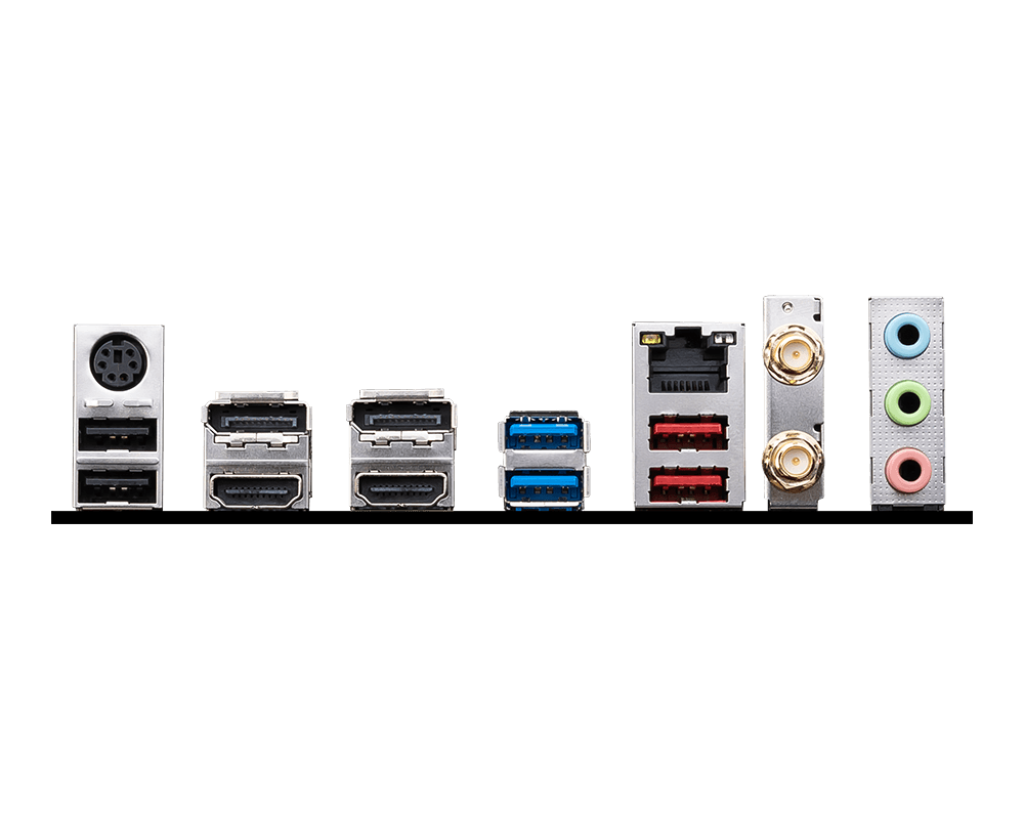

BACK PANEL PORTS
Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM Support for Windows® 11 64-bit- Windows® 10 64-bit
